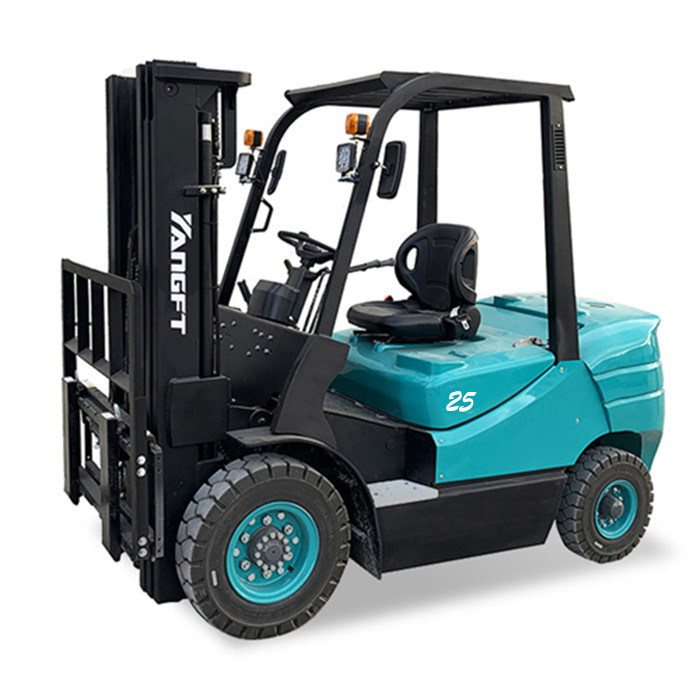

C Series 2-4 Tonne Diesel Operated Forklift Diesel Lift Truck

Diesel Forklift 2-4 Tonne

The 4-cylinder diesel forklifts adopt a design of a low center of gravity to guarantee stability in operation. With a small turning radius, they can be used in various confined space.

2000-4000 kg
3000 mm

19-20 km/h
2410-2610 mm

Features

The diesel forklifts are equipped with hydraulic drive systems to provide stable and high-efficient driving force.
Boasting outstanding performance, the forklifts are designed with high efficiency and torque output to achieve balance between load capacity and travel speed to meet different needs of material handling.
High-strength steel plates used in manufacturing forklifts ensure stability and safety.

Applications

Material handling in limited space, such as factories and workshops.

Technical Specifications

Model					CPCD20	CPCD25	CPCD30	CPCD35	CPCD40
Characteristics	Power				Diesel
	Capacity			kg	2000	2500	3000	3500	4000
	Load Centre			mm	500	500	500	500	500
	Lift Height		h	mm	3000	3000	3000	3000	3000
	Min. Turning Radius		Wa	mm	2410	2410	2410	2410	2850
Performance	Travel Speed	Load		km/h	19	19	20	20	19
Performance	Lift Speed	Load		mm/s	500	500	480	480	400
Dimensions	Total Length	With fork	L1+L2	mm	3750	3750	3770	3770	4055
	Total Length	Without fork	L2	mm	2680	2680	2700	2700	2985
	Total Width		b	mm	1160	1160	1225	1225	1360
	Max. Height		h4	mm	4245	4245	4265	4265	4315
	Mast Height		h1	mm	2085	2085	2100	2100	2195
Chassis	Tyre	Front			7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	250-15-20PR
	Tyre	Rear			6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR
	Wheelbase		L3	mm	1700	1700	1700	1700	1860
	Service Weight	No load		Kg	3600	3850	4300	4600	5100
Power	Engine	Model			C240	C240	C240	C240	4JG2
		Rated power	4JG2	kW/r.p.m	35.4/2500	35.4/2500	35.4/2500	35.4/2500	46.0/2450
		Rated torque		Nm/r.p.m	138/1800	138/1800	138/1800	138/1800	186/1800
		Cylinders			4	4	4	4	4
