Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T

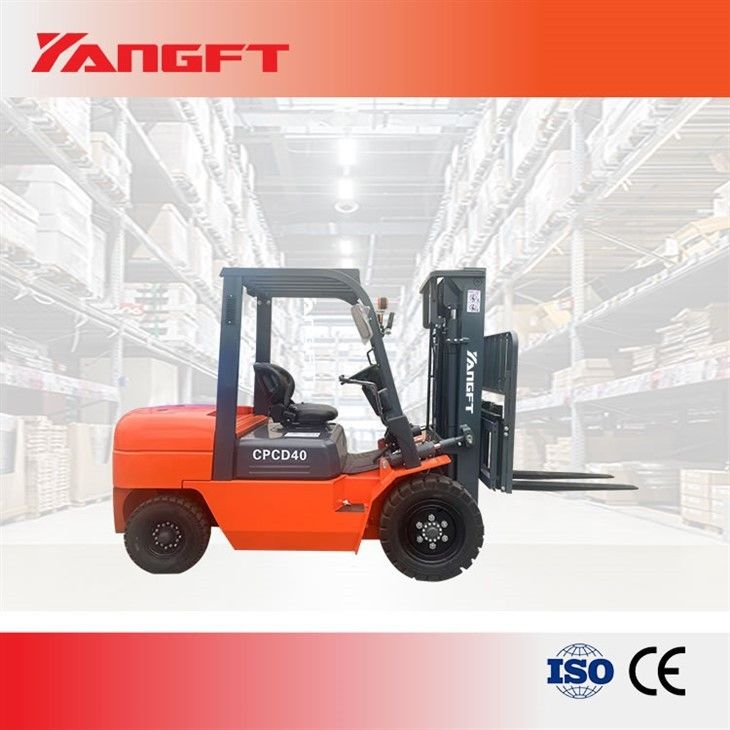

The 4-ton internal combustion forklift also has good stability and safety. It adopts a weight balance design, which can ensure the stable balance of the vehicle when handling heavy cargo and avoid accidents. In addition, it is also equipped with a number of safety devices, such as lights, horns, braking systems, etc., which can ensure the safety of the vehicle during driving.
Our survice
| After warranty service | Video technial support |
| Certification | CE.ISO |
| Port | Qingdao Shandong |
| Model | CPCD40 | |||||
| CHARACTERISTIC | POWER | units | ||||
| CAPACITY | kg | 4000 | ||||
| LOAD CENTRE | mm | 500 | ||||
| LIFT HEIGHT | h | mm | 3000 | |||
| MAST TILT ANGLE | F/R | Deg | 6/12 | |||
| MIN. TURNING RADIUS | Wa | mm | 2580 | |||
| OVERHEAD GUARD HEIGHT | mm | 2180 | ||||
| FRONT LOAD DISTANCE | mm | 490 | ||||
| PERFORMANCE | TRAVEL SPEED | LOAD/NO LOAD | km/h | 18/19 | ||
| LIFT SPEED | LOAD/NO LOAD | mm/s | 420/450 | |||
| MAX. GRADEABILITY | LOAD/NO LOAD | % | 18/19 | |||
| DIMENSIONS | TOTAL LENTH | WITH FORK | L1+L2 | mm | 3970 | |
| WITHOUT FORK | L2 | mm | 2900 | |||
| TOTAL WIDTH | b | mm | 1250 | |||
| MAX. HEIGHT | h4 | mm | 4275 | |||
| MAST HEIGHT | h | mm | 2195 | |||
| CHASSIS | TYRE | FRONT | 250-15 | |||
| REAR | 6.50-10 | |||||
| WHEELBASE | L3 | mm | 1900 | |||
| F/R track base | F/R | mm | 1000/970 | |||
| SERVICE WEIGHT | NO LOAD | kg | 4605 | |||
POWER |
BATTERY | VOKTAGE/CAPACITY | V/Ah | 12/80 | ||
| ENGINE | MODEL | A498BPG | ||||
| RATED POWER | kw/r.p.m | 45/2500 | ||||
| RATED TORQUE | Nm/r.p.m | 193/1600 | ||||
| CYLINDERS | 4 | |||||
