Gasoline LPG Forklift C Series 2-4 Tonne 4 Cylinder

Product Details

Place of Origin: China

Brand Name: yangft

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Delivery Time: 10 DAYS

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                Gasoline LPG Forklift 4 Cylinder, 4 ton Gasoline LPG Forklift, 2 ton gasoline forklift

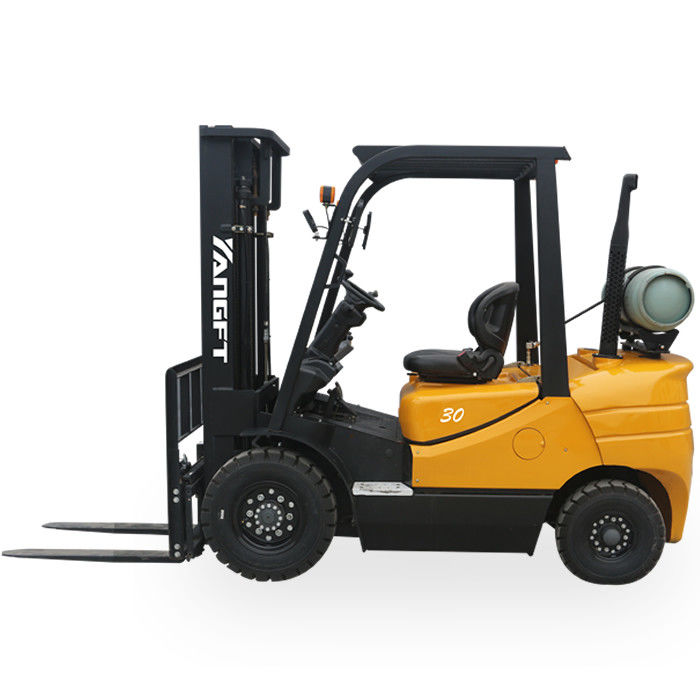

Gasoline LPG Forklift C Series 2-4 Tonne 4 Cylinder

This 4-cylinder LPG forklifts are available in a load capacity range of 2 to 4 tons, with a standard lift height of 3 meters, the maximum customized lift height of 8 meters and a highest travel speed of 20km/h. The compact forklifts are widely used for light material handling tasks in limited space, such as factories and workshops.

2000-4000 kg
3000 mm

19-20 km/h
2410-2610 mm

Features

The steering wheel is adjustable so it can reduce drivers’ fatigue after long periods of work.
The seat is comfortable and spacious enough to improve driving experience.
High-strength mast materials, a strong buffer system and a design of smart descent and automated deceleration effectively prevent goods from hitting the ground and thus protect the goods and the ground.
The simple yet reliable shock absorption design ensures safety and stability.

Applications

Material handling in factories and workshops.

Technical Specifications

Model				CPCD20	CPCD25	CPCD30	CPCD35	CPCD40
Characteristics	Power			Gasoline/LPG
	Capacity		kg	2000	2500	3000	3500	4000
	Load Centre		mm	500	500	500	500	500
	Lift Height		mm	3000	3000	3000	3000	3000
	Min. Turning Radius		mm	2410	2410	2410	2410	2610
Performance	Travel Speed	Load	km/h	19	19	20	20	20
Performance	Lift Speed	Load	mm/s	500	500	480	480	480
Dimensions	Total Length	With fork	mm	3750	3750	3770	3770	3970
	Total Length	Without fork	mm	2680	2680	2700	2700	2900
	Total Width		mm	1160	1160	1225	1225	1225
	Max. Height		mm	4245	4245	4265	4265	4265
	Mast Height		mm	2085	2085	2100	2100	2180
Chassis	Tyre	Front		7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	250-15-12PR
	Tyre	Rear		6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	Wheelbase		mm	1700	1700	1700	1700	1900
	Service Weight	No load	kg	3600	3850	4300	4600	4900
Power	Engine	Model		Quanchai/Xinchai				Quanchai TDCI
		Rated power	kW/r.p.m	36.8/2500	36.8/2500	36.8/2500	36.8/2500	36.8/2500
		Rated torque	Nm/r.p.m	156/1700-1900	156/1700-1900	156/1700-1900	156/1700-1900	180-190/1800-2000
		Cylinders		4	4	4	4	4
