Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Improved performance reliability and durability its compact size and revised rear axle enables better maneuverability in tight space, faster and smoother simultaneous operations in steering, lifting and tilting; and redesigned counterweight with up to 40% more airflow enhanced heat dissipation and can withstand harsher working environment.

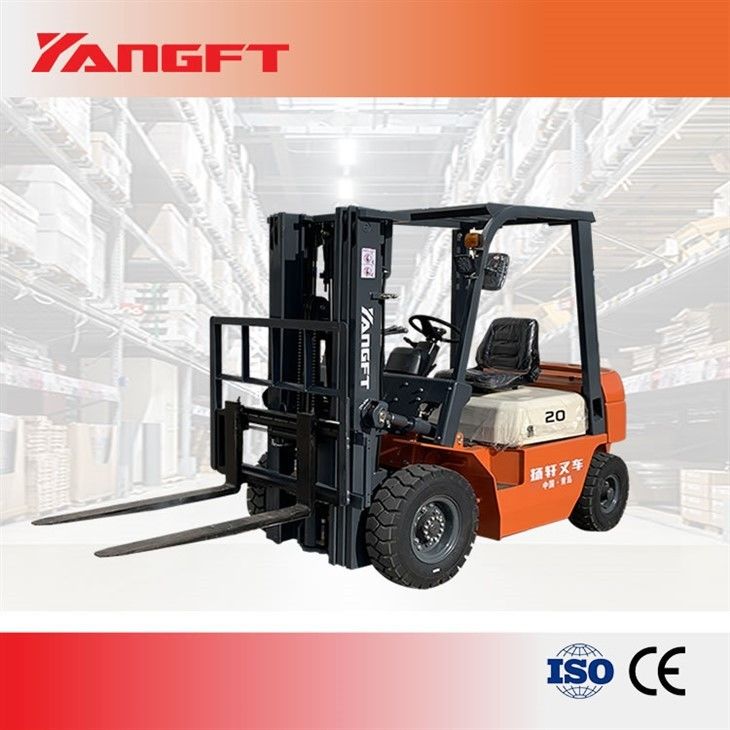

| Qingdao YangFT Forklift Truck Parameter List 2T | |||||
| Model | CPC(D)20 | ||||
| CHARACTERISTICS | POWER | DIESEL/GASOLINE | |||
| CAPACITY | kg | 2000 | |||
| LOAD CENTRE | mm | 500 | |||
| LIFT HEIGHT | mm | 3000 | |||
| MIN. TURNING RADIUS | mm | 2190 | |||
| PERFORMANCE | TRAVEL SPEED | LOAD | km/h | 19 | |
| LIFT SPEED | LOAD | mm/s | 500 | ||
| MAX. TRACTION POWER | LOAD | KW | 17 | ||
| DIMENSIONS | TOTAL LENTH | WITH FORK | mm | 3600 | |
| WITHOUT FORK | mm | 2530 | |||
| TOTAL WIDTH | mm | 1160 | |||
| MAX. HEIGHT | mm | 4220 | |||
| MAST HEIGHT | mm | 2100 | |||
| CHASSIS | TYRE | FRONT | 7.00-12 | ||
| REAR | 6.00-9 | ||||
| WHEELBASE | mm | 1600 | |||
| SERVICE WEIGHT | NO LOAD | Kg | 3530 | ||
| POWER | ENGINE | MODEL | QUANCHAI/XINCHAI | ||
| RATED POWER | kw/r.p.m | 36.8/2500 | |||
| RATED TORQUE | Nm/r.p.m | 156/1700-1900 | |||
| CYLINDERS | 4 | ||||
Comfortable Operation Space
Ergonomic design minimizes operator fatigue from long working hours, increases operating space, improves work efficiency through revision that gave more power and speed in simultaneous operations while driving, lifting and tilting.
Unibody frame
Boltless, unibody design increases strength by 20%, improves safety and allows the forklift to handle uneven surfaces and curvy paths, and can withstand long, rigorous transporting operation.
New Counterweight with Enhanced Heat Dissipation
New design offers as much as 40% more airflow compared to the competition. Faster heat dissipation lowers engine temperatures while facilitating maintenance.
Hi Performance Steering Gear System
Hydraulic steering gear system with revised stronger steering axle facilitates turning in tight spaces and can withstand more stringent working environment.
New Hydraulic System
1. Easier to maneuver, more flexible, reduces operating force by 16% and greatly improves work efficiency.
2. Japanese brand NOK O-rings prevents oil leakage with high resistance to hot and cold environment.
| Model | CPCD20 | |||||
CHARACTERISTICS |
POWER | GASOLINE/LPG | ||||
| CAPACITY | kg | 2000 | ||||
| LOAD CENTRE | mm | 500 | ||||
| LIFT HEIGHT | h | mm | 3000 | |||
| MAST TILT ANGLE | F/R | Deg | 6/12 | |||
| MIN. TURNING RADIUS | Wa | mm | 2410 | |||
| OVERHEAD GUARD HEIGHT | mm | 2150 | ||||
| FRONT LOAD DISTANCE | mm | 450 | ||||
PERFORMANCE |
TRAVEL SPEED | LOAD/NO LOAD | km/h | 18/19 | ||
| LIFT SPEED | LOAD/NO LOAD | mm/s | 475/500 | |||
| MAX. GRADEABILITY | LOAD/NO LOAD | % | 20/21 | |||
DIMENSIONS |
TOTAL LENTH | WITH FORK | L1+L2 | mm | 3750 | |
| WITHOUT FORK | L2 | mm | 2680 | |||
| TOTAL WIDTH | b | mm | 1160 | |||
| MAX. HEIGHT | BACKREST | h4 | mm | 4245 | ||
| MAST HEIGHT | h1 | mm | 2085 | |||
CHASSIS |
TYRE | FRONT | 7.00-12-12PR | |||
| REAR | 6.00-9-10PR | |||||
| WHEELBASE | L3 | mm | 1700 | |||
| TREAD | F/R | mm | 970/970 | |||
| SERVICE WEIGHT | NO LOAD | Kg | 3600 | |||
POWER |
BATTERY | VOKTAGE/CAPACITY | V/Ah | 12/80 | ||
ENGINE |
MODEL |
GK25 | ||||
| RATED POWER | kw/r.p.m | 37.4/2300 | ||||
| RATED TORQUE | Nm/r.p.m | 176.5/1600 | ||||
| CYLINDERS | 4 | |||||
