Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T

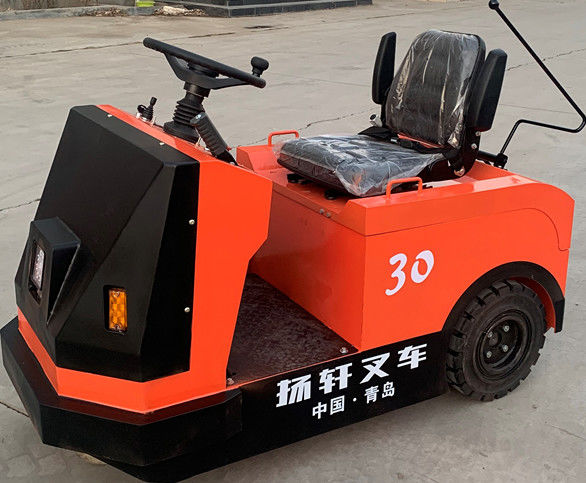

The electric tractor developed by YangFT is an environmentally friendly and efficient solution.
1. Features: low noise, no pollution, strong traction, easy operation, novel appearance, light and flexible steering, comfortable and safe operation, stable and reliable performance, easy maintenance.
2. Application scope:Ideal vehicles for materials handling within systems such as national defense, railways, postal services, manufacturing, pharmaceuticals, tobacco, and logistics.
| Item | Unit | Specification | ||||
| Model No. | TB60 | TB80 | TB100 | |||
| capacity | kg | 6000 | 8000 | 10000 | ||
| Rated Traction Force | n | 1800 | 1800 | 2130 | ||
| Wheel Base | L1 | mm | 1380 | 1380 | 1450 | |
| Weight | kg | 2250 | 2250 | 2500 | ||
| Tire | Type | pneumatic | pneumatic | pneumatic | ||
| Front | 5.0-8-8 PR | 5.0-8-8 PR | 18*7-8-14 PR | |||
| Rear | 6.5-10-10 PR | 6.5-10-10 PR | 7.0-12-12 PR | |||
| Seat Height(Above Ground) | H1 | mm | 1035 | 10.5 | 1035 | |
| Drawbar height(Above Ground) | H2 | mm | 400/450 | 400/450 | 400/450 | |
| Overall Size | L*W*H | mm | 2206*1100*2060 | 2206*1100*2060 | 2276*1195*2160 | |
| Ground clearance | B | mm | 130 | 130 | 130 | |
| Turning Radius | R | mm | 2100 | 2100 | 2200 | |
| Climbing ability with/without | % | 5/20 | 5/20 | 5/20 | ||
| Service brake | Trend/ Hydraulic | Trend/ Hydraulic | Trend/ Hydraulic | |||
| Parking brake | Hand/mechanical | Hand/mechanical | Hand/mechanical | |||
| Driving mode | Rear Wheel Drive | Rear Wheel Drive | Rear Wheel Drive | |||
| Travel Speed, with/without load | Km/h | 12/14 | 11.6/14 | 13/15 | ||
| Driving motor | KW | 5 | 5 | 5 | ||
| Steering motor | KW | 0.75 | 0.75 | 0.75 | ||
| Battery Capacity(5h) | V/Ah | 48/450 | 48/450 | 48/550 | ||
| Battery weight | kg | 800 | 800 | 1019 | ||
