Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T

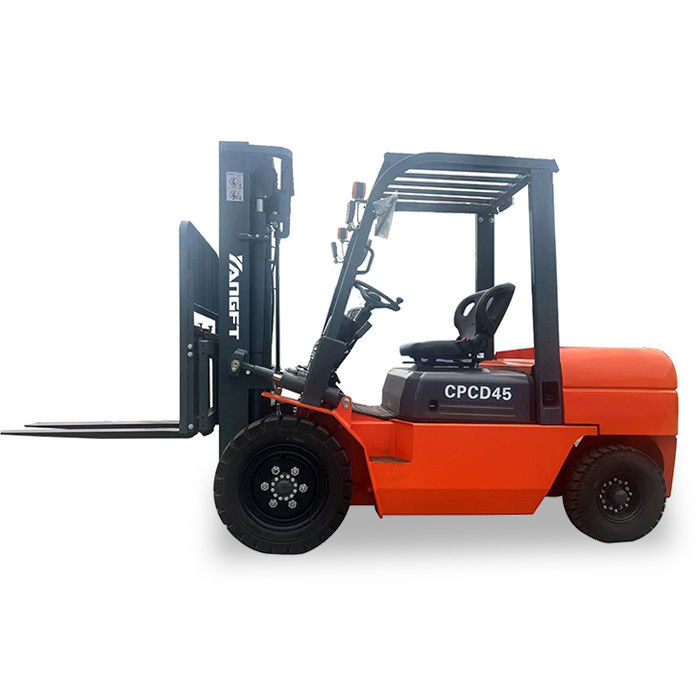

The diesel forklifts have the load capacity of 4 to 5 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 6 meters, the industrial forklifts can be used to transport concrete and large equipment. The forklifts are available with optional China-made or imported engines, such as Isuzu and Mitsubishi engines from Japan.
4000-5000 kg3000 mm22-24 km/h2470-3240 mmMaterial handling operation in factories, workshops and construction sites
| Model | |||||||
| Characteristics | Power | Diesel | |||||
| Capacity | kg | 4000 | 4500 | 5000 | 5000 | ||
| Load Centre | mm | 500 | 500 | 500 | 600 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2470 | 2620 | 2800 | 3240 | ||
| Performance | Travel Speed | Load | km/h | 22 | 24 | 22 | 24 |
| Lift Speed | Load | mm/s | 380 | 420 | 460 | 500 | |
| Max. Gradeability | % | 20 | 20 | 20 | |||
| Dimensions | Total Length | With fork | mm | 4000 | 4120 | 4690 | |
| Without fork | mm | 2930 | 3050 | 3139 | 3510 | ||
| Total Width | mm | 1290 | 1400 | 1480 | 1970 | ||
| Max. Height | mm | 4190 | 4220 | 4200 | 4600 | ||
| Mast Height | mm | 2130 | 2370 | 2270 | 2450 | ||
| Chassis | Tyre | Front | 710NHS | 300-15 | 300-15-20PR | 8.25-15NHS | |
| Rear | 660NHS | 700-12 | 7.00-12-12PR | 8.25-15NHS | |||
| Wheelbase | mm | 1900 | 1900 | 2000 | 2250 | ||
| Service Weight | No load | kg | 4950 | 5860 | 7100 | 8200 | |
| Power | Engine | Model | Quanchai/Xinchai | ||||
