                                                12 Tonne Diesel Forklift, 50 Tonne Diesel Forklift, 6 Cylinder heavy duty diesel forklift

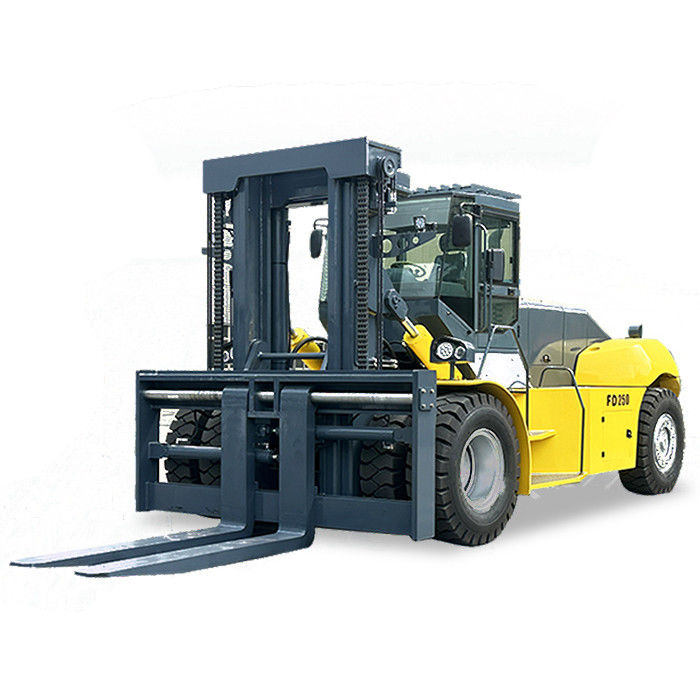

Diesel Forklift K Series 12-50 Tonne Heavy Duty 6 Cylinder

Diesel Forklift 12-50 Tonne

The heavy-duty 6-cylinder forklifts are capable of lifting materials up to 50 tons. With strong driving force, the forklifts deliver stable and outstanding material handling performance.

12000-500000 kg
4000 mm

23-26 km/h
4680-7730 mm

Features

Adopting a turbocharged engine, the forklifts consume less energy while enjoying powerful driving force and they have larger torque reserve.
The disc brake features quick heat dissipation, light weight, a simple structure and easy adjustment. Therefore, they are heat-resistant in heavy-load conditions while delivering stable braking performance.
The forklifts are equipped with dual hydraulic pumps which ensure strong power and stable performance.

Applications

Heavy material handling operation in airports, ports and train stations.

Technical Specifications

Model				CPCD120	CPCD160	CPCD200	CPCD250	CPCD300	CPCD320	CPCD350	CPCD420	CPCD460	CPCD500
Characteristics	Power			Diesel
	Capacity		kg	12000	16000	20000	25000	30000	32000	35000	42000	46000	500000
	Load Centre		mm	600	900	900	1220	1220	1220	1250	1250	1250	1250
	Lift Height		mm	3000	3500	4000	4000	4000	4000	4000	4000	4000	4000
	Min. Turning Radius		mm	4680	5340	5940	6480	6600	6800	6900	7730	7730	7730
Performance	Travel Speed	Load	km/h	23	22	26	25	24	24	24	26	26	26
Performance	Lift Speed	Load	mm/s	220	240	260	260	260	260	260	300	300	300
Dimensions	Total Lenth	With Fork	mm	6160	7530	8500	9040	9460	9460	9760	8170	8170	8170
	Total Width		mm	2250	2750	2930	3060	3060	3360	3360	3600	3600	3600
	Mast Height		mm	2950	3520	3930	3970	3970	4060	4150	5040	5040	5040
Chassis	Tyre	Front		11.00-20-18PR	12.00-24	14.00-24	14.00-24	14.00-24	16.00-25	14.00-24-32PR	4X18.00-25-28PR	4X18.00-25-28PR	4X18.00-25-28PR
	Tyre	Rear		10.00-20-18PR	12.00-20	12.00-24	14.00-24	14.00-24	14.00-24	14.00-24-32PR	2X16.00-25-28PR	2X16.00-25-28PR	2X16.00-25-28PR
	Wheelbase		mm	2950	1600	4200	4400	4600	4800	4800	5500	5500	5500
	Service Weight	NO LOAD	Kg	15500	3880	30000	33500	36500	38000	38000	51000	56000	60000
Power	Engine	Model		Yuchai	Yuchai	WeiChai	WeiChai	WeiChai	WeiChai	WeiChai	WeiChai	WeiChai	WeiChai
Power	Engine	Cylinders		6	6	6	6	6	6	6	6	6	6
