Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Our factory
Attachment options
Our survice

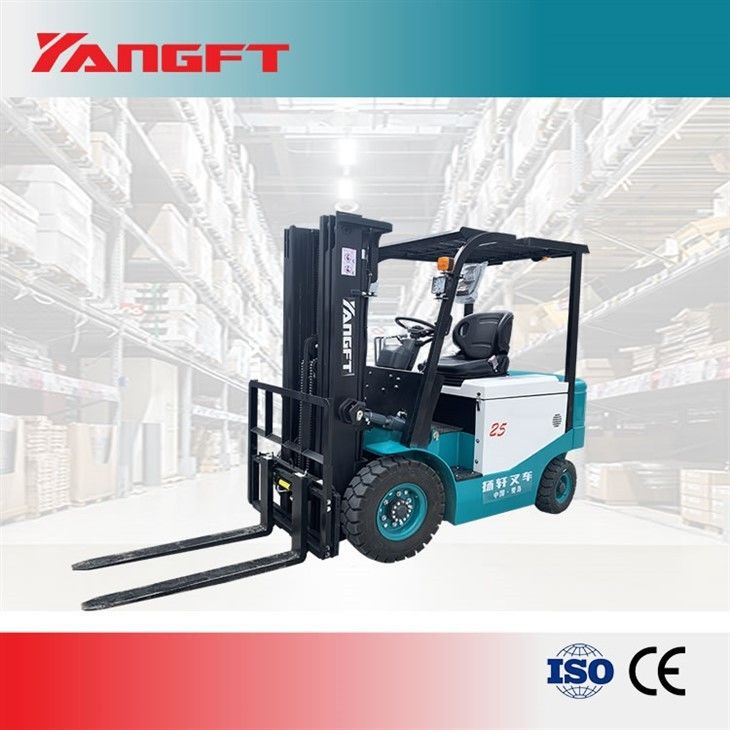

| Qingdao YangFT Electric Forklift A Series Parameter List (2 Ton to 4 Ton) | |||||
| Model | CPD25 | ||||
| CHARACTERISTICS | POWER | BATTERY | |||
| CAPACITY | kg | 2500 | |||
| LOAD CENTER | mm | 500 | |||
| LIFTING HEIGHT | h | mm | 3000 | ||
| MAST TILT ANGLE | F/R | Deg | 6/12 | ||
| OVERHEAD GUARD HEIGHT | Wa | mm | 2120 | ||
| PERFORMANCE | MAX.TRAVELING SPEED | LOAD/ NO LOAD | km/h | 13/14 | |
| MAX.LIFTING SPEED | LOAD/ NO LOAD | mm/s | 270/400 | ||
| MAX. GRADEABILITY | % | 15 | |||
| DIMENSIONS | TOTAL LENGTH | WITH FORK | L1+L2 | mm | 3370 |
| WITHOUT FORK | L2 | mm | 2300 | ||
| TOTAL WIDTH | b | mm | 1180 | ||
| MAX. HEIGHT | h4 | mm | 4040 | ||
| MAST HEIGHT | h | mm | 2060 | ||
| CHASSIS | TYRE | FRONT | 700-12 | ||
| REAR | 18x7-8-14PR | ||||
| WHEELBASE | mm | 1500 | |||
| SERVICE WEIGHT | NO LOAD | Kg | 4050 | ||
| POWER | BATTERY(LEAD-ACID) | VOLTAGE | V | 48 | |
| CAPACITY | Ah | 600 | |||
| MOTOR | DRIVE MOTORS | KW | 11 | ||
| OIL PUMP MOTOR | KW | 12 | |||
| OPTIONAL LITHIUM BATTERY |
LITHIUM BATTERY | V/AH | 48/350 | ||
