Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T

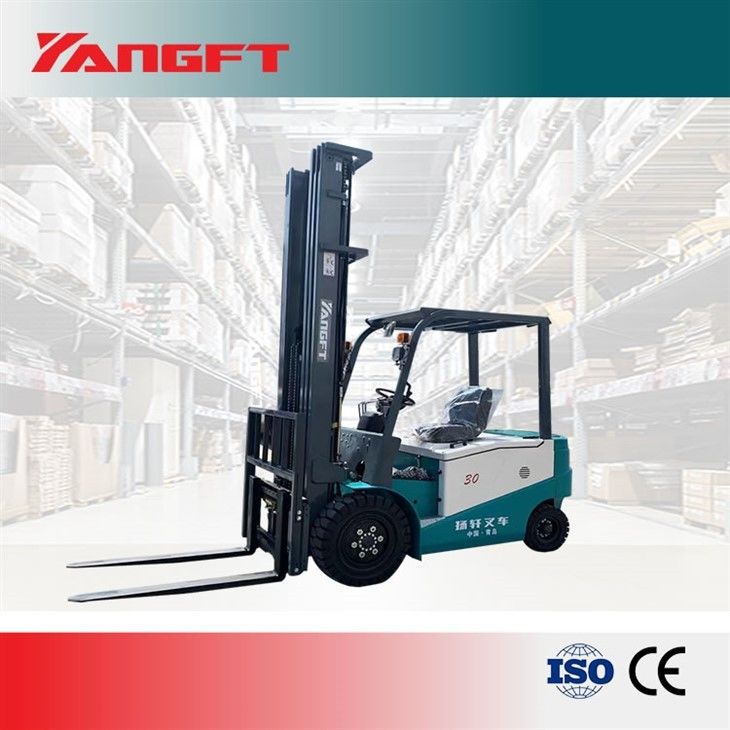

Built with simplistic design in mind, Yangft electric forklifts are quiet, compact with small turning radius, and offers great handling. With customized algorithms, the 7L electric forklifts offers impressive performance, especially on slopes. The forklifts are easy to maintain and have proven dependable and reliable.
Safety
Unibody frame
Boltless, unibody design increases strength by up to 20%, improves safety, and allows the forklift to handle uneven surfaces and curvy paths, and can withstand long, rigorous transporting operations.
Mast made with German steel* offers unparalleled rigidity and durability.
Anti-slip function automatically activates on slopes ensures safety.
Electronic Lock Valve (Optional)
Adds more security by locking the lifting and tilting system when the operator is away from the seat.
Comfort
Comfortable Operating Space
Ergonomic design minimizes operator fatigue from long working hours, increases operating space and improves work efficiency.
Adjustable Steering Wheel
Provide convenience and can customize to the operator's desired position.
Intelligent multi-function display
Multifunction display shows driving speed, battery charge, total hours, operator information and all warnings in one compact, easy to read instrument.
| Qingdao YangFT Electric Forklift A Series Parameter List (2 Ton to 4 Ton) | |||||
| Model | CPD30 | ||||
| CHARACTERISTICS | POWER | BATTERY | |||
| CAPACITY | kg | 3000 | |||
| LOAD CENTER | mm | 500 | |||
| LIFTING HEIGHT | h | mm | 3000 | ||
| MAST TILT ANGLE | F/R | Deg | 6/12 | ||
| OVERHEAD GUARD HEIGHT | Wa | mm | 2320 | ||
| PERFORMANCE | MAX.TRAVELING SPEED | LOAD/ NO LOAD | km/h | 13/14 | |
| MAX.LIFTING SPEED | LOAD/ NO LOAD | mm/s | 280/360 | ||
| MAX. GRADEABILITY | % | 15 | |||
| DIMENSIONS | TOTAL LENGTH | WITH FORK | L1+L2 | mm | 3590 |
| WITHOUT FORK | L2 | mm | 2520 | ||
| TOTAL WIDTH | b | mm | 1225 | ||
| MAX. HEIGHT | h4 | mm | 4210 | ||
| MAST HEIGHT | h | mm | 2115 | ||
| CHASSIS | TYRE | FRONT | 28x9-15 | ||
| REAR | 18x7-8-14PR | ||||
| WHEELBASE | mm | 1700 | |||
| SERVICE WEIGHT | NO LOAD | Kg | 4900 | ||
| POWER | BATTERY(LEAD-ACID) | VOLTAGE | V | 80 | |
| CAPACITY | Ah | 500 | |||
| MOTOR | DRIVE MOTORS | KW | 13 | ||
| OIL PUMP MOTOR | KW | 14 | |||
| OPTIONAL LITHIUM BATTERY |
LITHIUM BATTERY | V/AH | 76.8/230 | ||
