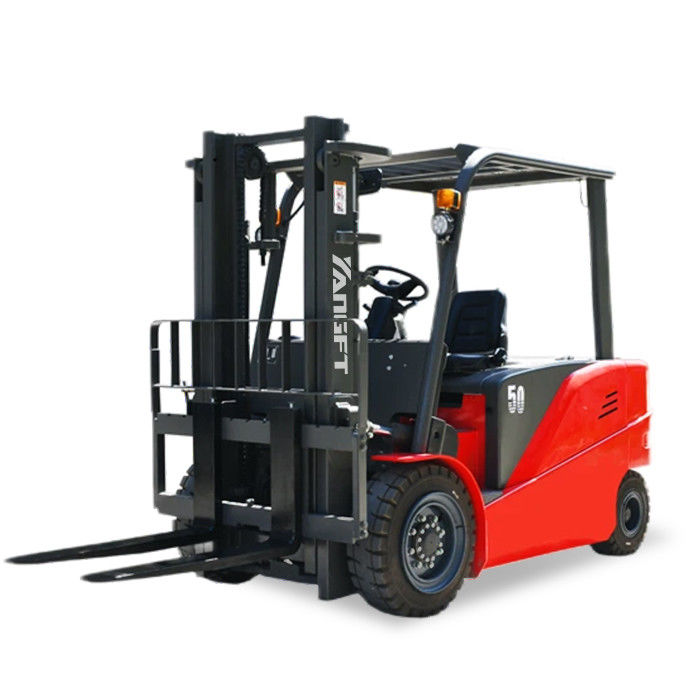

Electric Forklift 4-5 Tonne
The light-duty electric forklifts are available with optional lithium batteries and lead-acid batteries, with the capacity of 500 and 630 Ah. The strong battery configuration can provide long-lasting power for material handling tasks.
4000-5000 kg3000 mm13-17 km/h2320-4080 mmFlexible material handling solutions for limited and indoor space, such as warehouses, logistics centers and delivery centers.
| Model | |||||
| Characteristics | Power | Battery | |||
| Capacity | kg | 4000 | 5000 | ||
| Load Centre | mm | 500 | 600 | ||
| Lift Height | mm | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2320 | 3240/4080 | ||
| Performance | Travel Speed | Load/no load | km/h | 13/14 | 15/17 |
| Lift Speed | Load/no load | mm/s | 280/360 | 370/420 | |
| Dimensions | Total Length | Without fork | mm | 2520 | 3510 |
| Total Width | mm | 1225 | 1970 | ||
| Max. Height | mm | 4210 | 4600 | ||
| Mast Height | mm | 2065 | 2450 | ||
| Chassis | Tyre | Front | 23x9-10 | 8.25-15NHS | |
| Rear | 18x7-8-14PR | 8.25-15NHS | |||
| Wheelbase | mm | 1700 | 2250 | ||
| Service Weight | No load | kg | 5400 | 7900 | |
| Power | Battery | Electric tension | V | 80 | 76.8 |
| Capacity | Ah | 500 | 630 | ||
| Motor | Drive motor | kW | 14 | 25 | |
| Hydraulic motor | kW | 13 | 21*2 | ||
