Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T

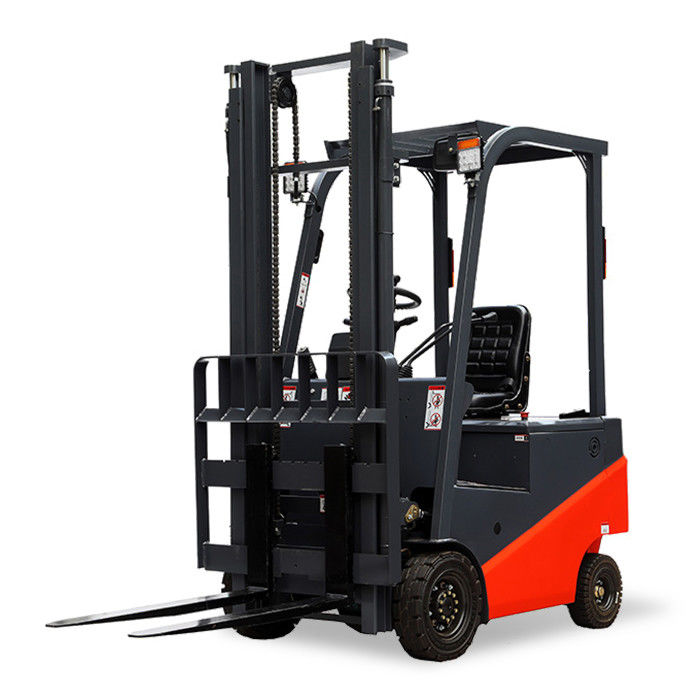

Electric Forklift 1-2.5 Tonne
The light-duty material handing forklift is suitable for confined space thanks to its compact design and the kerb weight of 2450 kg. In the full loaded conditions, its travel speed can reach 15 km/h.
1000-2500 kg3000 mm11-15 km/h1650-2050 mmMaterial handling in limited space, such as warehouses, logistics centers and delivery centers.
| Model | |||||||
| Characteristics | Power | Battery | |||||
| Capacity | kg | 1000 | 1500 | 2000 | 2500 | ||
| Load Centre | mm | 400 | 500 | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | mm | 1650 | 2050 | 2050 | 2050 | ||
| Performance | Travel Speed | Load/no load | km/h | 11/13 | 13/15 | 13/15 | 13/15 |
| Lift Speed | Load/no load | mm/s | 100/250 | 315/335 | 315/335 | 315/335 | |
| Dimensions | Total Length | Without fork | mm | 1655 | 2155 | 2155 | 2155 |
| Total Width | Wheel | mm | 920 | 1060 | 1060 | 1060 | |
| Chassis | mm | 930 | 1088 | 1088 | 1088 | ||
| Max. Height | mm | 3870 | 4100 | 4100 | 4100 | ||
| Mast Height | mm | 2060 | 2000 | 2000 | 2000 | ||
| Chassis | Tyre | Front | 15*4 1/2-8 | 650-10 | 650-10 | 650-10 | |
| Rear | 3.50-5 | 500-8 | 500-8 | 500-8 | |||
| Wheelbase | mm | 1045 | 1425 | 1425 | 1425 | ||
| Service Weight | No load | kg | 2450 | 2450 | 2450 | 2450 | |
| Power | Battery | Voltage/capacity | V/Ah | 48V/225AH | 48V/225AH | 48V/400AH | 48V/480AH |
| Motor | Drive motor | kW | 4 | 5.5 | 6.5 | 6.5 | |
| Pump motor | kW | 4 | 5.5 | 6.5 | 7.5 | ||
