Product Details
Place of Origin: China
Brand Name: yangft
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 DAYS
Payment Terms: Western Union, MoneyGram, T/T

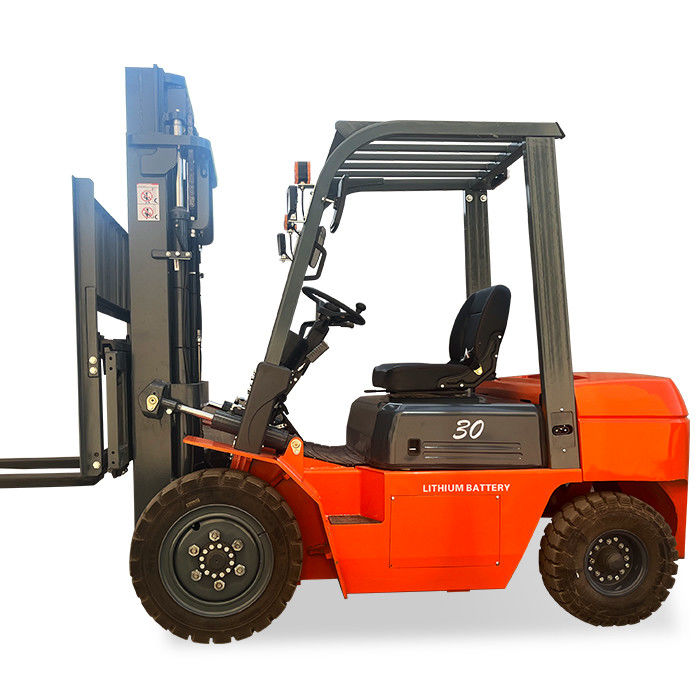

Electric Forklift 3-3.5 Tonne
The electric forklift is available with the load capacity of 3 to 3.5 tons. The standard lift height is 3 meters and the maximum customized lift height is 8 meters. With a multi-function LCD, the forklift enables operators to better control the vehicle.
3000-3500 kg3000 mm13-14 km/h2400-2470 mmMaterial handling in warehouses, logistics centers and distribution centers.
| Model | ||||||
| Characteristics | Power | Battery | ||||
| Capacity | kg | 3000 | 3300 | 3500 | ||
| Load Centre | mm | 500 | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2400 | 2470 | 2470 | ||
| Performance | Travel Speed | Load/no load | km/h | 13/14 | 13/14 | 13/14 |
| Lift Speed | Load/no load | mm/s | 290/420 | 290/420 | 290/420 | |
| Dimensions | Total Length | Without fork | mm | 2700 | 2800 | 2800 |
| Total Width | mm | 1225 | 1225 | 1225 | ||
| Max. Lifting Height | With backrest | mm | 4265 | 4265 | 4265 | |
| Mast Height | mm | 2100 | 2100 | 2100 | ||
| Chassis | Tyre | Front | 28x9-15 | 28x9-15 | 28x9-15 | |
| Rear | 6.50-10 | 6.50-10 | 6.50-10 | |||
| Wheelbase | mm | 1700 | 1800 | 1800 | ||
| Service Weight | No load | kg | 4350 | 4300 | 4605 | |
| Power | Battery | Electric tension | V | 76.8 | ||
| Capacity | Ah | 230 | ||||
| Motor | Drive motor | kW | 10 | |||
| Oil pump motor | kW | 12 | ||||
