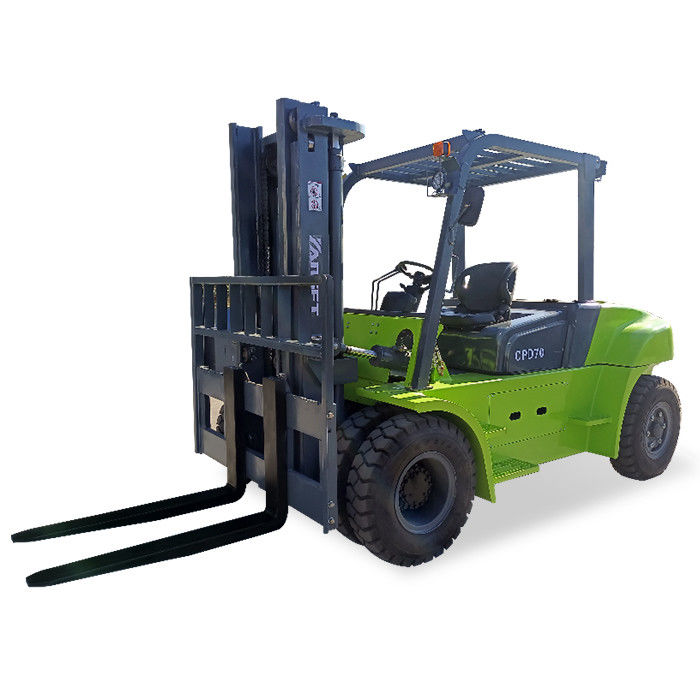

Electric Forklift 5-10 Tonne
The heavy-duty electric forklifts have the load capacity of 5 to 10 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 6 meters. With a simplified brake system, this equipment reduces wear among components and extends its service life.
5000-10000 kg3000 mm14-16 km/h3250-4080 mmHeavy material handling in warehouses, logistics centers and distribution centers.
| Model | ||||||||
| Characteristics | Power | Lithium battery | ||||||
| Capacity | kg | 5000 | 6000 | 7000 | 8000 | 10000 | ||
| Load Centre | mm | 600 | 600 | 600 | 600 | 600 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | Inner side | mm | 3250 | 3250 | 3370 | 3700 | 4080 | |
| Performance | Travel Speed | Load/no load | km/h | 14/16 | 14/16 | 14/16 | 14/16 | 14/16 |
| Lift Speed | Load/no load | mm/s | 360/400 | 360/400 | 340/380 | 280/300 | 280/300 | |
| Dimensions | Total Length | Without fork | mm | 3560 | 3560 | 3600 | 3830 | 4260 |
| Total Width | mm | 1995 | 1995 | 1995 | 2100 | 2240 | ||
| Max. Lifting Height | mm | 3750 | 3750 | 3750 | 4050 | 4320 | ||
| Mast Height | mm | 2500 | 2500 | 2500 | 2870 | 2840 | ||
| Chassis | Tyre | Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-20-14PR | 9.00-20-16PR | |
| Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-20-14PR | 9.00-20-16PR | |||
| Wheelbase | mm | 2250 | 2250 | 2250 | 2500 | 2800 | ||
| Service Weight | No load | kg | 7800 | 8500 | 9200 | 10200 | 12000 | |
| Power | Battery | Electric tension | V | 80 | ||||
| Capacity | Ah | 700 | ||||||
| Motor | Drive motor | kW | 25 | |||||
| Hydraulic motor | kW | 2*21 | 2*26 | |||||
